Quick Details

  • Place of Origin: Netherlands
  • Brand Name: Mini multipurpose marker
  • Model Number: TD60
  • Colours: Green, red, ice-blue, white
  • Typlical applications: Hospitals, auditoriums, stairways, corridors, theatres
  • Key features: Absolute reliability, no batteries or bulbs required
  • Size: Different sizes available
  • Service life of light source: 10 years
  • Size mini marker: 25x8x6 weight, 1.0 g
  • Size micro marker: 11 x 5 x 4 wieght, 0.3g
  • Material: Polycarbonate
  • Fixing: by (two) screws or doubled sided tape

Packaging & Delivery

Packaging Details: Carton box
Delivery Detail: of stock

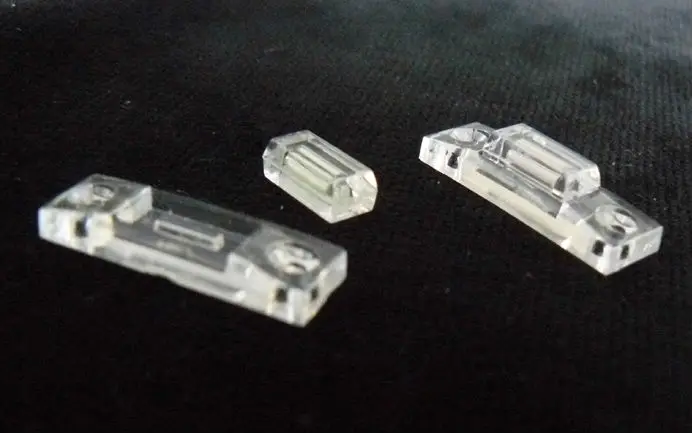

THE MINI MARKER



The Mini Marker is a compact and versatile self-powered, self-luminous marker. It provides the user with a quick, easy and reliable means of seeing and locating a switch or asset in the dark. The Mini Marker generates a safe, secure and continuous illumination that is unaffected by climate and that does not require batteries or recharging by ambient light during its service life of 10 years.

  • Uniquely reliable trigalight® light source
  • No batteries, bulbs, switches or spare parts
  • Quick and easy to install …. no wiring required
  • Versatile … “Mini” and “Micro” options in four colours
  • Long maintenance-free service life
Illumination



Mini Markers incorporate a Betalight Gaseous Tritium Light Source (GTLS) which provides a reliable, safe and self-powered source of continuous light output. No battery or charging by ambient light is required during the lifetime of the product. GTLS comprise a sealed borosilicate glass capsule which contains a tiny amount of gaseous tritium, the power supply for the device. Beta-particle radiation (ie. electrons released by the gaseous tritium as it decays) is harnessed to energise a phosphor coating on the inside surface of the capsule, causing it to glow. As a sealed source, they are non-emissive and operate at a very low energy level. Every Betalight source light is manufactured and tested in accordance with the UK MOD Defence Standard 62/4. GTLS containno moving parts and, because the unit is continuously energised, an off/on switch is not required. They will remain energised for more than 10 maintenance-free years, even during extended periods of complete darkness. Betalight devices can be used in any environmental conditions, even under water, and in temperatures ranging from -40º to 80ºC. They are suitable for operation in Zone 0 hazardous areas.

Installation Options

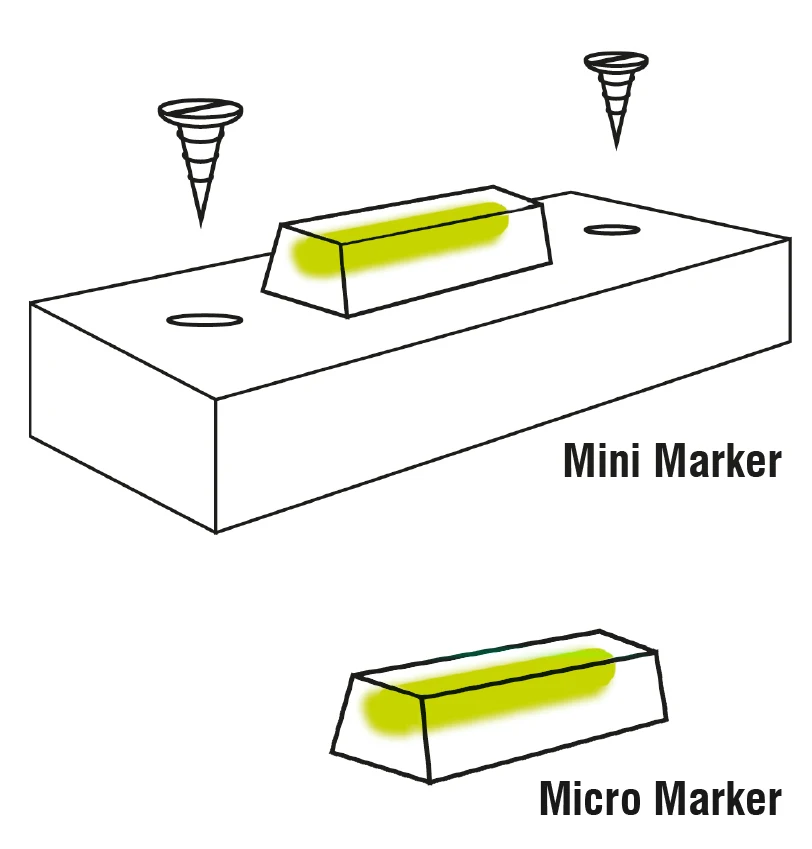

There are two installation options available to the user. The “Mini”, which utilises both base and canopy as a single unit and is suitable for surface fixing by (two) screws, double-sided tape or contact adhesive. Secondly, the “Micro” comprises only the canopy piece and is suitable for fixing using double-sided tape or contact adhesive. The Micro marker offers a very compact footprint, enabling the units to be installed in tight spaces and on miniature items. When using the Micro configuration, the base piece is discarded.

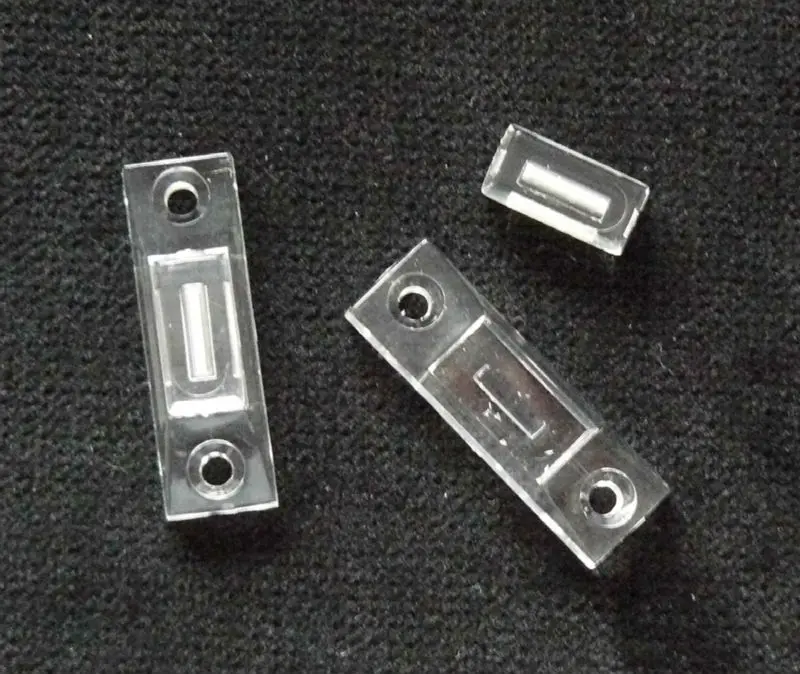

Mini Marker p/n TD-60x ….. Dimensions: 25 x 8 x 6mm Weight: 1.0g
Micro Marker p/n TD-60xm … Dimensions: 11 x 5 x 4mm Weight: 0.3g



These Markers are moulded in clear, grade V0 polycarbonate, providing a tough protective enclosure and making them highly shock resistant. Each Betalight has a maximum activity of 0.67GBq.

Colour & Packaging Options
Markers are available in four colours; green, red, ice-blue and white. They can be supplied loose or packaged in eurohook blister packs of 3, each pack comprising any colour mix. A barcode is provided.

Functional Finish and Form
Mini & Micro Markers are designed with simplicity and versatility in mind. As compact, lightweight and straight- forward as possible, they will simply do the job and give years of safe, dependable, practical service.


Regulations

It is the buyers responsibility to comply with the local regulations.
